The ZJ15 skid-mounted drilling rig is a mechanical drive drilling machine designed for coalbed methane well, geothermal well and water well exploitation. Its basic parameters conform to the China national standard of SY/T5600-1999 (Types and Basic Parameters of Petroleum Drilling Machines). Its auxiliary parts complying with specification of API can meet the different drilling technical requirements. The ZJ20 skid-mounted drilling equipment is an improved product developed based on the ZJ15 model. It is suitable for exploiting oil, gas, and water well with the depth of 800m-2000m.
ZJ30 skid-mounted drilling rig is suitable for drilling wells in the depth lower than 3000m. It can work in different sort of environments like shallow sea areas, beaches, desert and cold areas.
The key components of this machine are driven by mechanical transmission. The whole machine is a highly cost effective product which is easy to operate and maintain.
The drawworks is mainly driven by sealed chain transmission system supplemented with an auxiliary driving device used to hoist the derrick in emergency situations. Designed with an integrated compound chain transmission case, the drawworks features low failure rate, easy operation and maintenance.
This series of skid-mounted drilling rigs include three models that are respectively ZJ40/2250J, ZJ40/2250LDB and ZJ40/2250L. They are suitable for being applied in drilling engineering to drill wells with the depth lower than 4000m. They can be used in different environments such as shallow sea areas, beaches, desert and cold areas based on the need of customers.
Including models of ZJ50/3150D and ZJ50/3150L, our ZJ50 series skid-mounted drilling rigs can be used to drill wells with the depth not exceeding 5000m. Based on the practical need of customers, they can work in shallow sea areas, beaches, deserts cold areas, etc.
Speeds of the drawworks, rotary table and the mud pump can be steplessly regulated independently. This helps optimizes the drilling technology.
The drawworks and mud pump of our skid-mounted drilling rig adopt hydraulic and compound chain transmissions. 3 sets of A12V190PZL-3 diesel engines and their hydraulic couple reduction gearbox together form the power units. The power unit is assembled on the pedestal of the backstage drill floor. Parallel compounded by multi-axis integral chain boxes, the power unit will drive two sets of 1600hp mud pumps respectively by two cardan shafts. The compound boxes and the input end of the drawworks are butted by butt joint chain box. The drawworks is assembled on the pedestal for drawworks in a low position.

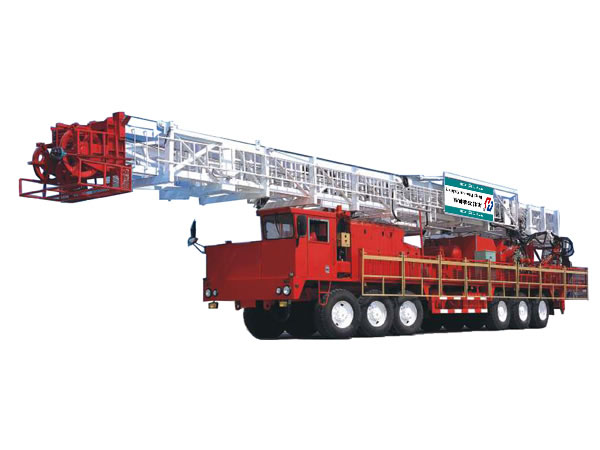

With the power system, drawworks, derrick, traveling block system and the transmission system amounted on the self-propelled chassis, our product has the characteristics of easy removal with low cost, reliable performance, heavy operating load capacity and strong cross-country power.
The overall design and basic parameter of our truck-mounted drilling rig conform to the standard of SY/T5202-2004.
Developed with several patented technologies, the RL-CZ30 truck-mounted drilling rig can be applied into oil well drilling engineers with drilling depth lower than 3000m.
This product is designed with two sets of diesel engines. The engines can work independently or in parallel. Thus our drilling machine is safe to operate and easy to maintain.
Mature parallel operation transfer cases and Allison transmission boxes are adopted into this truck-mounted drilling rig.

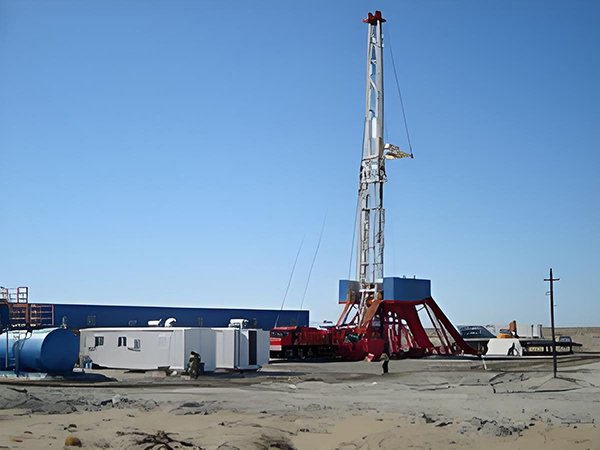

This product is the truck-mounted drilling rig which has the highest drilling depth among the truck-mounted drilling machines we have produced. It is also the largest self-propelled light-duty drilling equipment in the world. Our product can be used in exploration engineering to drill oil wells with the depth lower than 4000m.
Our truck-mounted drilling rig is designed with reliable double-engine parallel operation power system and compound transmission system made of gear transfer cases. The engines can work individually or in parallel according to practical need. This makes our drilling machine easy to maintain.
Equipped with Caterpillar diesel engine and Allison hydraulic transmission box, our products are reliable in performance. The skid-mounted drilling machine has power ranging from 450hp to 3000hp and rated drilling depth ranging from 1000m to 9000m. The power range and drilling depth range of the truck-mounted drilling machine are respectively 450hp-1000hp and 1000m-4000m.
The key components of our drilling rig are manufactured in accordance with the API standard. We strictly control every production step from machine design, raw material purchasing to processing so as to insure the quality and performance of our finished products. We manage our company following the standard of ISO management system to increase production and reduce production cost. Since production cost is lower, our product is competitive in price. With complete after-sales service system and enough spare component stock, we can help customers solve their problems in time.
